数据存储

数据存储设计

一对一消息存储

_images/backends_1.png
  1. Publish 端发布一条消息；
  2. Backend 将消息记录数据库中；
  3. Subscribe 端订阅主题；
  4. Backend 从数据库中获取该主题的消息；
  5. 发送消息给 Subscribe 端；
  6. Subscribe 端确认后 Backend 从数据库中移除该消息；

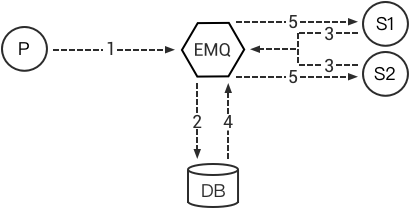

一对多消息存储

_images/backends_2.png
  1. Publish 端发布一条消息；
  2. Backend 将消息记录在数据库中；
  3. Subscribe1 和 Subscribe2 订阅主题；
  4. Backend 从数据库中获取该主题的消息；
  5. 发送消息给 Subscribe1 和 Subscribe2；
  6. Backend记录Subscribe1 和 Subscribe2 已读消息位置，下次获取消息从该位置开始。

客户端在线状态存储

EMQ X 存储支持将设备上下线状态，直接存储到Redis或数据库。

客户端代理订阅

EMQ X 存储支持代理订阅功能。设备客户端上线时，由存储模块直接从数据库，代理加载订阅主题。

存储插件列表

EMQ X 支持 MQTT 消息直接存储 Redis、MySQL、PostgreSQL、MongoDB、Cassandra、DynamoDB、InfluxDB、OpenTSDB 数据库:

存储插件 配置文件 说明
emqx_backend_redis emqx_backend_redis.conf Redis 消息存储
emqx_backend_mysql emqx_backend_mysql.conf MySQL 消息存储
emqx_backend_pgsql emqx_backend_pgsql.conf PostgreSQL 消息存储
emqx_backend_mongo emqx_backend_mongo.conf MongoDB 消息存储
emqx_backend_cassa emqx_backend_cassa.conf Cassandra 消息存储
emqx_backend_dynamo emqx_backend_dynamo.conf DynamoDB 消息存储
emqx_backend_influxdb emqx_backend_influxdb.conf InfluxDB 消息存储
emqx_backend_opentsdb emqx_backend_opentsdb.conf OpenTSDB 消息存储

Redis 数据存储

配置文件: emqx_backend_redis.conf

配置 Redis 服务器

支持配置多台 Redis 服务器连接池:

## Redis 服务集群类型: single | sentinel | cluster
backend.redis.pool1.type = single

## Redis 服务器地址列表
backend.redis.pool1.server = 127.0.0.1:6379

## Redis sentinel 模式下的 sentinel 名称
## backend.redis.pool1.sentinel = mymaster

## Redis 连接池大小
backend.redis.pool1.pool_size = 8

## Redis 数据库名称
backend.redis.pool1.database = 0

## Redis 密码
## backend.redis.pool1.password =

## 订阅的 Redis channel 名称
backend.redis.pool1.channel = mqtt_channel

配置 Redis 存储规则

backend.redis.hook.client.connected.1    = {"action": {"function": "on_client_connected"}, "pool": "pool1"}
backend.redis.hook.session.created.1     = {"action": {"function": "on_subscribe_lookup"}, "pool": "pool1"}
backend.redis.hook.client.disconnected.1 = {"action": {"function": "on_client_disconnected"}, "pool": "pool1"}
backend.redis.hook.session.subscribed.1  = {"topic": "queue/#", "action": {"function": "on_message_fetch_for_queue"}, "pool": "pool1"}
backend.redis.hook.session.subscribed.2  = {"topic": "pubsub/#", "action": {"function": "on_message_fetch_for_pubsub"}, "pool": "pool1"}
backend.redis.hook.session.subscribed.3  = {"action": {"function": "on_retain_lookup"}, "pool": "pool1"}
backend.redis.hook.session.unsubscribed.1= {"topic": "#", "action": {"commands": ["DEL mqtt:acked:${clientid}:${topic}"]}, "pool": "pool1"}
backend.redis.hook.message.publish.1     = {"topic": "#", "action": {"function": "on_message_publish"}, "expired_time" : 3600, "pool": "pool1"}
backend.redis.hook.message.publish.2     = {"topic": "#", "action": {"function": "on_message_retain"}, "expired_time" : 3600, "pool": "pool1"}
backend.redis.hook.message.publish.3     = {"topic": "#", "action": {"function": "on_retain_delete"}, "pool": "pool1"}
backend.redis.hook.message.acked.1       = {"topic": "queue/#", "action": {"function": "on_message_acked_for_queue"}, "pool": "pool1"}
backend.redis.hook.message.acked.2       = {"topic": "pubsub/#", "action": {"function": "on_message_acked_for_pubsub"}, "pool": "pool1"}

Redis 存储规则说明

hook topic action/function 说明
client.connected   on_client_connected 存储客户端在线状态
session.created   on_subscribe_lookup 订阅主题
client.disconnected   on_client_disconnected 存储客户端离线状态
session.subscribed queue/# on_message_fetch_for_queue 获取一对一离线消息
session.subscribed pubsub/# on_message_fetch_for_pubsub 获取一对多离线消息
session.subscribed # on_retain_lookup 获取 retain 消息
session.unsubscribed #   删除 acked 消息
message.publish # on_message_publish 存储发布消息
message.publish # on_message_retain 存储 retain 消息
message.publish # on_retain_delete 删除 retain 消息
message.acked queue/# on_message_acked_for_queue 一对一消息 ACK 处理
message.acked pubsub/# on_message_acked_for_pubsub 一对多消息 ACK 处理

Redis 命令行参数说明

hook 可用参数 示例(每个字段分隔，必须是一个空格)
client.connected clientid SET conn:${clientid} ${clientid}
client.disconnected clientid SET disconn:${clientid} ${clientid}
session.subscribed clientid, topic, qos HSET sub:${clientid} ${topic} ${qos}
session.unsubscribed clientid, topic SET unsub:${clientid} ${topic}
message.publish message, msgid, topic, payload, qos, clientid RPUSH pub:${topic} ${msgid}
message.acked msgid, topic, clientid HSET ack:${clientid} ${topic} ${msgid}
message.deliver msgid, topic, clientid HSET deliver:${clientid} ${topic} ${msgid}

Redis 命令行配置 Action

Redis 存储支持用户采用 Redis Commands 语句配置 Action，例如:

## 在客户端连接到 EMQ X 服务器后，执行一条 redis
backend.redis.hook.client.connected.3 = {"action": {"commands": ["SET conn:${clientid} ${clientid}"]}, "pool": "pool1"}

Redis 设备在线状态 Hash

mqtt:client Hash 存储设备在线状态:

hmset
key = mqtt:client:${clientid}
value = {state:int, online_at:timestamp, offline_at:timestamp}

hset
key = mqtt:node:${node}
field = ${clientid}
value = ${ts}

查询设备在线状态:

HGETALL "mqtt:client:${clientId}"

例如 ClientId 为 test 客户端上线:

HGETALL mqtt:client:test
1) "state"
2) "1"
3) "online_at"
4) "1481685802"
5) "offline_at"
6) "undefined"

例如 ClientId 为 test 客户端下线:

HGETALL mqtt:client:test
1) "state"
2) "0"
3) "online_at"
4) "1481685802"
5) "offline_at"
6) "1481685924"

Redis 保留消息 Hash

mqtt:retain Hash 存储 Retain 消息:

hmset
key = mqtt:retain:${topic}
value = {id: string, from: string, qos: int, topic: string, retain: int, payload: string, ts: timestamp}

查询 retain 消息:

HGETALL "mqtt:retain:${topic}"

例如查看 topic 为 topic 的 retain 消息:

HGETALL mqtt:retain:topic
 1) "id"
 2) "6P9NLcJ65VXBbC22sYb4"
 3) "from"
 4) "test"
 5) "qos"
 6) "1"
 7) "topic"
 8) "topic"
 9) "retain"
10) "true"
11) "payload"
12) "Hello world!"
13) "ts"
14) "1481690659"

Redis 消息存储 Hash

mqtt:msg Hash 存储 MQTT 消息:

hmset
key = mqtt:msg:${msgid}
value = {id: string, from: string, qos: int, topic: string, retain: int, payload: string, ts: timestamp}

zadd
key = mqtt:msg:${topic}
field = 1
value = ${msgid}

Redis 消息确认 SET

mqtt:acked SET 存储客户端消息确认:

set
key = mqtt:acked:${clientid}:${topic}
value = ${msgid}

Redis 订阅存储 Hash

mqtt:sub Hash 存储订阅关系:

hset
key = mqtt:sub:${clientid}
field = ${topic}
value = ${qos}

某个客户端订阅主题:

HSET mqtt:sub:${clientid} ${topic} ${qos}

例如为 ClientId 为 test 的客户端订阅主题 topic1, topic2

HSET "mqtt:sub:test" "topic1" 1
HSET "mqtt:sub:test" "topic2" 2

查询 ClientId 为 test 的客户端已订阅主题:

HGETALL mqtt:sub:test
1) "topic1"
2) "1"
3) "topic2"
4) "2"

Redis SUB/UNSUB 事件发布

设备需要订阅/取消订阅主题时，业务服务器向 Redis 发布事件消息:

PUBLISH
channel = "mqtt_channel"
message = {type: string , topic: string, clientid: string, qos: int}
\*type: [subscribe/unsubscribe]

例如 ClientId 为 test 客户端订阅主题 topic0

PUBLISH "mqtt_channel" "{\"type\": \"subscribe\", \"topic\": \"topic0\", \"clientid\": \"test\", \"qos\": \"0\"}"

例如 ClientId 为 test 客户端取消订阅主题:

PUBLISH "mqtt_channel" "{\"type\": \"unsubscribe\", \"topic\": \"test_topic0\", \"clientid\": \"test\"}"

Note

Redis Cluster 无法使用 Redis PUB/SUB 功能。

启用 Redis 数据存储插件

./bin/emqx_ctl plugins load emqx_backend_redis

MySQL 数据存储

配置文件: emqx_backend_mysql.conf

配置 MySQL 服务器

支持配置多台 MySQL 服务器连接池:

## Mysql 服务器地址
backend.mysql.pool1.server = 127.0.0.1:3306

## Mysql 连接池大小
backend.mysql.pool1.pool_size = 8

## Mysql 用户名
backend.mysql.pool1.user = root

## Mysql 密码
backend.mysql.pool1.password = public

## Mysql 数据库名称
backend.mysql.pool1.database = mqtt

配置 MySQL 存储规则

backend.mysql.hook.client.connected.1    = {"action": {"function": "on_client_connected"}, "pool": "pool1"}
backend.mysql.hook.session.created.1     = {"action": {"function": "on_subscribe_lookup"}, "pool": "pool1"}
backend.mysql.hook.client.disconnected.1 = {"action": {"function": "on_client_disconnected"}, "pool": "pool1"}
backend.mysql.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "pool": "pool1"}
backend.mysql.hook.session.subscribed.2  = {"topic": "#", "action": {"function": "on_retain_lookup"}, "pool": "pool1"}
backend.mysql.hook.session.unsubscribed.1= {"topic": "#", "action": {"sql": ["delete from mqtt_acked where clientid = ${clientid} and topic = ${topic}"]}, "pool": "pool1"}
backend.mysql.hook.message.publish.1     = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}
backend.mysql.hook.message.publish.2     = {"topic": "#", "action": {"function": "on_message_retain"}, "pool": "pool1"}
backend.mysql.hook.message.publish.3     = {"topic": "#", "action": {"function": "on_retain_delete"}, "pool": "pool1"}
backend.mysql.hook.message.acked.1       = {"topic": "#", "action": {"function": "on_message_acked"}, "pool": "pool1"}

## 获取离线消息
##  "offline_opts": 获取离线消息的配置
##     - max_returned_count: 单次拉去的最大离线消息数目
##     - time_range: 仅拉去在当前时间范围的消息
## backend.mysql.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "offline_opts": {"max_returned_count": 500, "time_range": "2h"}, "pool": "pool1"}

## 如果需要存储 Qos0 消息, 可开启以下配置
## 警告: 当开启以下配置时, 需关闭 'on_message_fetch', 否则 qos1, qos2 消息会被存储俩次
## backend.mysql.hook.message.publish.4     = {"topic": "#", "action": {"function": "on_message_store"}, "pool": "pool1"}

MySQL 存储规则说明

hook topic action 说明
client.connected   on_client_connected 存储客户端在线状态
session.created   on_subscribe_lookup 订阅主题
client.disconnected   on_client_disconnected 存储客户端离线状态
session.subscribed # on_message_fetch 获取离线消息
session.subscribed # on_retain_lookup 获取retain消息
message.publish # on_message_publish 存储发布消息
message.publish # on_message_retain 存储retain消息
message.publish # on_retain_delete 删除retain消息
message.acked # on_message_acked 消息ACK处理

SQL 语句参数说明

hook 可用参数 示例(sql语句中${name} 表示可获取的参数)
client.connected clientid insert into conn(clientid) values(${clientid})
client.disconnected clientid insert into disconn(clientid) values(${clientid})
session.subscribed clientid, topic, qos insert into sub(topic, qos) values(${topic}, ${qos})
session.unsubscribed clientid, topic delete from sub where topic = ${topic}
message.publish msgid, topic, payload, qos, clientid insert into msg(msgid, topic) values(${msgid}, ${topic})
message.acked msgid, topic, clientid insert into ack(msgid, topic) values(${msgid}, ${topic})
message.deliver msgid, topic, clientid insert into deliver(msgid, topic) values(${msgid}, ${topic})

SQL 语句配置 Action

MySQL 存储支持用户采用 SQL 语句配置 Action:

## 在客户端连接到 EMQ X 服务器后，执行一条 sql 语句(支持多条 sql 语句)
backend.mysql.hook.client.connected.3 = {"action": {"sql": ["insert into conn(clientid) values(${clientid})"]}, "pool": "pool1"}

创建 MySQL 数据库表

create database mqtt;

导入 MySQL 库表结构

mysql -u root -p mqtt < etc/sql/emqx_backend_mysql.sql

Note

数据库名称可自定义

MySQL 设备在线状态表

mqtt_client 存储设备在线状态:

DROP TABLE IF EXISTS `mqtt_client`;
CREATE TABLE `mqtt_client` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `clientid` varchar(64) DEFAULT NULL,
  `state` varchar(3) DEFAULT NULL,
  `node` varchar(64) DEFAULT NULL,
  `online_at` datetime DEFAULT NULL,
  `offline_at` datetime DEFAULT NULL,
  `created` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`),
  KEY `mqtt_client_idx` (`clientid`),
  UNIQUE KEY `mqtt_client_key` (`clientid`),
  INDEX topic_index(`id`, `clientid`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8MB4;

查询设备在线状态:

select * from mqtt_client where clientid = ${clientid};

例如 ClientId 为 test 客户端上线:

select * from mqtt_client where clientid = "test";

+----+----------+-------+----------------+---------------------+---------------------+---------------------+
| id | clientid | state | node           | online_at           | offline_at          | created             |
+----+----------+-------+----------------+---------------------+---------------------+---------------------+
|  1 | test     | 1     | emqx@127.0.0.1 | 2016-11-15 09:40:40 | NULL                | 2016-12-24 09:40:22 |
+----+----------+-------+----------------+---------------------+---------------------+---------------------+
1 rows in set (0.00 sec)

例如 ClientId 为 test 客户端下线:

select * from mqtt_client where clientid = "test";

+----+----------+-------+----------------+---------------------+---------------------+---------------------+
| id | clientid | state | node           | online_at           | offline_at          | created             |
+----+----------+-------+----------------+---------------------+---------------------+---------------------+
|  1 | test     | 0     | emqx@127.0.0.1 | 2016-11-15 09:40:40 | 2016-11-15 09:46:10 | 2016-12-24 09:40:22 |
+----+----------+-------+----------------+---------------------+---------------------+---------------------+
1 rows in set (0.00 sec)

MySQL 主题订阅表

mqtt_sub 存储设备的主题订阅关系:

DROP TABLE IF EXISTS `mqtt_sub`;
CREATE TABLE `mqtt_sub` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `clientid` varchar(64) DEFAULT NULL,
  `topic` varchar(180) DEFAULT NULL,
  `qos` tinyint(1) DEFAULT NULL,
  `created` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`),
  KEY `mqtt_sub_idx` (`clientid`,`topic`,`qos`),
  UNIQUE KEY `mqtt_sub_key` (`clientid`,`topic`),
  INDEX topic_index(`id`, `topic`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8MB4;

例如 ClientId 为 test 客户端订阅主题 test_topic1 test_topic2:

insert into mqtt_sub(clientid, topic, qos) values("test", "test_topic1", 1);
insert into mqtt_sub(clientid, topic, qos) values("test", "test_topic2", 2);

某个客户端订阅主题:

select * from mqtt_sub where clientid = ${clientid};

查询 ClientId 为 test 的客户端已订阅主题:

select * from mqtt_sub where clientid = "test";

+----+--------------+-------------+------+---------------------+
| id | clientId     | topic       | qos  | created             |
+----+--------------+-------------+------+---------------------+
|  1 | test         | test_topic1 |    1 | 2016-12-24 17:09:05 |
|  2 | test         | test_topic2 |    2 | 2016-12-24 17:12:51 |
+----+--------------+-------------+------+---------------------+
2 rows in set (0.00 sec)

MySQL 消息存储表

mqtt_msg 存储 MQTT 消息:

DROP TABLE IF EXISTS `mqtt_msg`;
CREATE TABLE `mqtt_msg` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `msgid` varchar(64) DEFAULT NULL,
  `topic` varchar(180) NOT NULL,
  `sender` varchar(64) DEFAULT NULL,
  `node` varchar(64) DEFAULT NULL,
  `qos` tinyint(1) NOT NULL DEFAULT '0',
  `retain` tinyint(1) DEFAULT NULL,
  `payload` blob,
  `arrived` datetime NOT NULL,
  PRIMARY KEY (`id`),
  INDEX topic_index(`id`, `topic`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8MB4;

查询某个客户端发布的消息:

select * from mqtt_msg where sender = ${clientid};

查询 ClientId 为 test 的客户端发布的消息:

select * from mqtt_msg where sender = "test";

+----+-------------------------------+----------+--------+------+-----+--------+---------+---------------------+
| id | msgid                         | topic    | sender | node | qos | retain | payload | arrived             |
+----+-------------------------------+----------+--------+------+-----+--------+---------+---------------------+
| 1  | 53F98F80F66017005000004A60003 | hello    | test   | NULL |   1 |      0 | hello   | 2016-12-24 17:25:12 |
| 2  | 53F98F9FE42AD7005000004A60004 | world    | test   | NULL |   1 |      0 | world   | 2016-12-24 17:25:45 |
+----+-------------------------------+----------+--------+------+-----+--------+---------+---------------------+
2 rows in set (0.00 sec)

MySQL 保留消息表

mqtt_retain 存储 retain 消息:

DROP TABLE IF EXISTS `mqtt_retain`;
CREATE TABLE `mqtt_retain` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `topic` varchar(180) DEFAULT NULL,
  `msgid` varchar(64) DEFAULT NULL,
  `sender` varchar(64) DEFAULT NULL,
  `node` varchar(64) DEFAULT NULL,
  `qos` tinyint(1) DEFAULT NULL,
  `payload` blob,
  `arrived` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`),
  UNIQUE KEY `mqtt_retain_key` (`topic`),
  INDEX topic_index(`id`, `topic`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8MB4;

查询 retain 消息:

select * from mqtt_retain where topic = ${topic};

查询 topic 为 retain 的 retain 消息:

select * from mqtt_retain where topic = "retain";

+----+----------+-------------------------------+---------+------+------+---------+---------------------+
| id | topic    | msgid                         | sender  | node | qos  | payload | arrived             |
+----+----------+-------------------------------+---------+------+------+---------+---------------------+
|  1 | retain   | 53F33F7E4741E7007000004B70001 | test    | NULL |    1 | www     | 2016-12-24 16:55:18 |
+----+----------+-------------------------------+---------+------+------+---------+---------------------+
1 rows in set (0.00 sec)

MySQL 消息确认表

mqtt_acked 存储客户端消息确认:

DROP TABLE IF EXISTS `mqtt_acked`;
CREATE TABLE `mqtt_acked` (
  `id` int(11) unsigned NOT NULL AUTO_INCREMENT,
  `clientid` varchar(64) DEFAULT NULL,
  `topic` varchar(180) DEFAULT NULL,
  `mid` int(11) unsigned DEFAULT NULL,
  `created` timestamp NULL DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `mqtt_acked_key` (`clientid`,`topic`),
  INDEX topic_index(`id`, `topic`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8MB4;

启用 MySQL 数据存储插件

./bin/emqx_ctl plugins load emqx_backend_mysql

PostgreSQL 数据存储

配置文件: emqx_backend_pgsql.conf

配置 PostgreSQL 服务器

支持配置多台PostgreSQL服务器连接池:

## Pgsql 服务器地址
backend.pgsql.pool1.server = 127.0.0.1:5432

## Pgsql 连接池大小
backend.pgsql.pool1.pool_size = 8

## Pgsql 用户名
backend.pgsql.pool1.username = root

## Pgsql 密码
backend.pgsql.pool1.password = public

## Pgsql 数据库名称
backend.pgsql.pool1.database = mqtt

## Pgsql Ssl
backend.pgsql.pool1.ssl = false

配置 PostgreSQL 存储规则

backend.pgsql.hook.client.connected.1    = {"action": {"function": "on_client_connected"}, "pool": "pool1"}
backend.pgsql.hook.session.created.1     = {"action": {"function": "on_subscribe_lookup"}, "pool": "pool1"}
backend.pgsql.hook.client.disconnected.1 = {"action": {"function": "on_client_disconnected"}, "pool": "pool1"}
backend.pgsql.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "pool": "pool1"}
backend.pgsql.hook.session.subscribed.2  = {"topic": "#", "action": {"function": "on_retain_lookup"}, "pool": "pool1"}
backend.pgsql.hook.session.unsubscribed.1= {"topic": "#", "action": {"sql": ["delete from mqtt_acked where clientid = ${clientid} and topic = ${topic}"]}, "pool": "pool1"}
backend.pgsql.hook.message.publish.1     = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}
backend.pgsql.hook.message.publish.2     = {"topic": "#", "action": {"function": "on_message_retain"}, "pool": "pool1"}
backend.pgsql.hook.message.publish.3     = {"topic": "#", "action": {"function": "on_retain_delete"}, "pool": "pool1"}
backend.pgsql.hook.message.acked.1       = {"topic": "#", "action": {"function": "on_message_acked"}, "pool": "pool1"}

## 获取离线消息
##  "offline_opts": 获取离线消息的配置
##     - max_returned_count: 单次拉去的最大离线消息数目
##     - time_range: 仅拉去在当前时间范围的消息
## backend.pgsql.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "offline_opts": {"max_returned_count": 500, "time_range": "2h"}, "pool": "pool1"}

## 如果需要存储 Qos0 消息, 可开启以下配置
## 警告: 当开启以下配置时, 需关闭 'on_message_fetch', 否则 qos1, qos2 消息会被存储俩次
## backend.pgsql.hook.message.publish.4     = {"topic": "#", "action": {"function": "on_message_store"}, "pool": "pool1"}

PostgreSQL 存储规则说明

hook topic action 说明
client.connected   on_client_connected 存储客户端在线状态
session.created   on_subscribe_lookup 订阅主题
client.disconnected   on_client_disconnected 存储客户端离线状态
session.subscribed # on_message_fetch 获取离线消息
session.subscribed # on_retain_lookup 获取 retain 消息
message.publish # on_message_publish 存储发布消息
message.publish # on_message_retain 存储 retain 消息
message.publish # on_retain_delete 删除 retain 消息
message.acked # on_message_acked 消息 ACK 处理

SQL 语句参数说明

hook 可用参数 示例(sql语句中${name} 表示可获取的参数)
client.connected clientid insert into conn(clientid) values(${clientid})
client.disconnected clientid insert into disconn(clientid) values(${clientid})
session.subscribed clientid, topic, qos insert into sub(topic, qos) values(${topic}, ${qos})
session.unsubscribed clientid, topic delete from sub where topic = ${topic}
message.publish msgid, topic, payload, qos, clientid insert into msg(msgid, topic) values(${msgid}, ${topic})
message.acked msgid, topic, clientid insert into ack(msgid, topic) values(${msgid}, ${topic})
message.deliver msgid, topic, clientid insert into deliver(msgid, topic) values(${msgid}, ${topic})

SQL 语句配置 Action

PostgreSQL 存储支持用户采用SQL语句配置 Action，例如:

## 在客户端连接到 EMQ X 服务器后，执行一条 sql 语句(支持多条sql语句)
backend.pgsql.hook.client.connected.3 = {"action": {"sql": ["insert into conn(clientid) values(${clientid})"]}, "pool": "pool1"}

创建 PostgreSQL 数据库

createdb mqtt -E UTF8 -e

导入 PostgreSQL 库表结构

\i etc/sql/emqx_backend_pgsql.sql

Note

数据库名称可自定义

PostgreSQL 设备在线状态表

mqtt_client 存储设备在线状态:

CREATE TABLE mqtt_client(
  id SERIAL8 primary key,
  clientid character varying(64),
  state integer,
  node character varying(64),
  online_at timestamp ,
  offline_at timestamp,
  created timestamp without time zone,
  UNIQUE (clientid)
);

查询设备在线状态:

select * from mqtt_client where clientid = ${clientid};

例如 ClientId 为 test 客户端上线:

select * from mqtt_client where clientid = 'test';

 id | clientid | state | node             | online_at           | offline_at        | created
----+----------+-------+----------------+---------------------+---------------------+---------------------
  1 | test     | 1     | emqx@127.0.0.1 | 2016-11-15 09:40:40 | NULL                | 2016-12-24 09:40:22
(1 rows)

例如 ClientId 为 test 客户端下线:

select * from mqtt_client where clientid = 'test';

 id | clientid | state | nod            | online_at           | offline_at          | created
----+----------+-------+----------------+---------------------+---------------------+---------------------
  1 | test     | 0     | emqx@127.0.0.1 | 2016-11-15 09:40:40 | 2016-11-15 09:46:10 | 2016-12-24 09:40:22
(1 rows)

PostgreSQL 代理订阅表

mqtt_sub 存储订阅关系:

CREATE TABLE mqtt_sub(
  id SERIAL8 primary key,
  clientid character varying(64),
  topic character varying(255),
  qos integer,
  created timestamp without time zone,
  UNIQUE (clientid, topic)
);

例如 ClientId 为 test 客户端订阅主题 test_topic1 test_topic2 :

insert into mqtt_sub(clientid, topic, qos) values('test', 'test_topic1', 1);
insert into mqtt_sub(clientid, topic, qos) values('test', 'test_topic2', 2);

某个客户端订阅主题:

select * from mqtt_sub where clientid = ${clientid};

查询 ClientId 为 test 的客户端已订阅主题:

select * from mqtt_sub where clientid = 'test';

 id | clientId     | topic       | qos  | created
----+--------------+-------------+------+---------------------
  1 | test         | test_topic1 |    1 | 2016-12-24 17:09:05
  2 | test         | test_topic2 |    2 | 2016-12-24 17:12:51
(2 rows)

PostgreSQL 消息存储表

mqtt_msg 存储MQTT消息:

CREATE TABLE mqtt_msg (
  id SERIAL8 primary key,
  msgid character varying(64),
  sender character varying(64),
  topic character varying(255),
  qos integer,
  retain integer,
  payload text,
  arrived timestamp without time zone
);

查询某个客户端发布的消息:

select * from mqtt_msg where sender = ${clientid};

查询 ClientId 为 test 的客户端发布的消息:

select * from mqtt_msg where sender = 'test';

 id | msgid                         | topic    | sender | node | qos | retain | payload | arrived
----+-------------------------------+----------+--------+------+-----+--------+---------+---------------------
 1  | 53F98F80F66017005000004A60003 | hello    | test   | NULL |   1 |      0 | hello   | 2016-12-24 17:25:12
 2  | 53F98F9FE42AD7005000004A60004 | world    | test   | NULL |   1 |      0 | world   | 2016-12-24 17:25:45
(2 rows)

PostgreSQL 保留消息表

mqtt_retain 存储 Retain 消息:

CREATE TABLE mqtt_retain(
  id SERIAL8 primary key,
  topic character varying(255),
  msgid character varying(64),
  sender character varying(64),
  qos integer,
  payload text,
  arrived timestamp without time zone,
  UNIQUE (topic)
);

查询 retain 消息:

select * from mqtt_retain where topic = ${topic};

查询 topic 为 retain 的 retain 消息:

select * from mqtt_retain where topic = 'retain';

 id | topic    | msgid                         | sender  | node | qos  | payload | arrived
----+----------+-------------------------------+---------+------+------+---------+---------------------
  1 | retain   | 53F33F7E4741E7007000004B70001 | test    | NULL |    1 | www     | 2016-12-24 16:55:18
(1 rows)

PostgreSQL 消息确认表

mqtt_acked 存储客户端消息确认:

CREATE TABLE mqtt_acked (
  id SERIAL8 primary key,
  clientid character varying(64),
  topic character varying(64),
  mid integer,
  created timestamp without time zone,
  UNIQUE (clientid, topic)
);

启用 PostgreSQL 数据存储插件

./bin/emqx_ctl plugins load emqx_backend_pgsql

MongoDB 消息存储

配置 MongoDB 消息存储

配置文件: emqx_backend_mongo.conf

配置 MongoDB 服务器

支持配置多台 MongoDB 服务器连接池:

## MongoDB 集群类型: single | unknown | sharded | rs
backend.mongo.pool1.type = single

## 如果 type = rs; 需要配置 setname
## backend.mongo.pool1.rs_set_name = testrs

## MongoDB 服务器地址列表
backend.mongo.pool1.server = 127.0.0.1:27017

## MongoDB 连接池大小
backend.mongo.pool1.c_pool_size = 8

## 连接的数据库名称
backend.mongo.pool1.database = mqtt

## MongoDB 认证用户名密码
## backend.mongo.pool1.login =  emqtt
## backend.mongo.pool1.password = emqtt

## MongoDB 认证源
## backend.mongo.pool1.auth_source = admin

## 是否开启 SSL
## backend.mongo.pool1.ssl = false

## SSL 密钥文件路径
## backend.mongo.pool1.keyfile =

## SSL 证书文件路径
## backend.mongo.pool1.certfile =

## SSL CA 证书文件路径
## backend.mongo.pool1.cacertfile =

## MongoDB 数据写入模式: unsafe | safe
## backend.mongo.pool1.w_mode = safe

## MongoDB 数据读取模式: master | slaver_ok
## backend.mongo.pool1.r_mode = slave_ok

## MongoDB 底层 driver 配置, 保持默认即可
## backend.mongo.topology.pool_size = 1
## backend.mongo.topology.max_overflow = 0
## backend.mongo.topology.overflow_ttl = 1000
## backend.mongo.topology.overflow_check_period = 1000
## backend.mongo.topology.local_threshold_ms = 1000
## backend.mongo.topology.connect_timeout_ms = 20000
## backend.mongo.topology.socket_timeout_ms = 100
## backend.mongo.topology.server_selection_timeout_ms = 30000
## backend.mongo.topology.wait_queue_timeout_ms = 1000
## backend.mongo.topology.heartbeat_frequency_ms = 10000
## backend.mongo.topology.min_heartbeat_frequency_ms = 1000

## MongoDB Backend Hooks
backend.mongo.hook.client.connected.1    = {"action": {"function": "on_client_connected"}, "pool": "pool1"}
backend.mongo.hook.session.created.1     = {"action": {"function": "on_subscribe_lookup"}, "pool": "pool1"}
backend.mongo.hook.client.disconnected.1 = {"action": {"function": "on_client_disconnected"}, "pool": "pool1"}
backend.mongo.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "pool": "pool1", "offline_opts": {"time_range": "2h", "max_returned_count": 500}}
backend.mongo.hook.session.subscribed.2  = {"topic": "#", "action": {"function": "on_retain_lookup"}, "pool": "pool1"}
backend.mongo.hook.session.unsubscribed.1= {"topic": "#", "action": {"function": "on_acked_delete"}, "pool": "pool1"}
backend.mongo.hook.message.publish.1     = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}
backend.mongo.hook.message.publish.2     = {"topic": "#", "action": {"function": "on_message_retain"}, "pool": "pool1"}
backend.mongo.hook.message.publish.3     = {"topic": "#", "action": {"function": "on_retain_delete"}, "pool": "pool1"}
backend.mongo.hook.message.acked.1       = {"topic": "#", "action": {"function": "on_message_acked"}, "pool": "pool1"}

## 获取离线消息
##  "offline_opts": 获取离线消息的配置
##     - max_returned_count: 单次拉去的最大离线消息数目
##     - time_range: 仅拉去在当前时间范围的消息
## backend.mongo.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "pool": "pool1", "offline_opts": {"time_range": "2h", "max_returned_count": 500}}

## 如果需要存储 Qos0 消息, 可开启以下配置
## 警告: 当开启以下配置时, 需关闭 'on_message_fetch', 否则 qos1, qos2 消息会被存储俩次
## backend.mongo.hook.message.publish.4     = {"topic": "#", "action": {"function": "on_message_store"}, "pool": "pool1", "payload_format": "mongo_json"}

backend 消息存储规则包括:

hook topic action 说明
client.connected   on_client_connected 存储客户端在线状态
session.created   on_subscribe_lookup 订阅主题
client.disconnected   on_client_disconnected 存储客户端离线状态
session.subscribed # on_message_fetch 获取离线消息
session.subscribed # on_retain_lookup 获取retain消息
session.unsubscribed # on_acked_delete 删除 acked 消息
message.publish # on_message_publish 存储发布消息
message.publish # on_message_retain 存储retain消息
message.publish # on_retain_delete 删除retain消息
message.acked # on_message_acked 消息ACK处理

MongoDB 数据库初始化

use mqtt
db.createCollection("mqtt_client")
db.createCollection("mqtt_sub")
db.createCollection("mqtt_msg")
db.createCollection("mqtt_retain")
db.createCollection("mqtt_acked")

db.mqtt_client.ensureIndex({clientid:1, node:2})
db.mqtt_sub.ensureIndex({clientid:1})
db.mqtt_msg.ensureIndex({sender:1, topic:2})
db.mqtt_retain.ensureIndex({topic:1})

NOTE: 数据库名称可自定义

MongoDB 用户状态集合(Client Collection)

mqtt_client 存储设备在线状态:

{
    clientid: string,
    state: 0,1, //0离线 1在线
    node: string,
    online_at: timestamp,
    offline_at: timestamp
}

查询设备在线状态:

db.mqtt_client.findOne({clientid: ${clientid}})

例如 ClientId 为 test 客户端上线:

db.mqtt_client.findOne({clientid: "test"})

{
    "_id" : ObjectId("58646c9bdde89a9fb9f7fb73"),
    "clientid" : "test",
    "state" : 1,
    "node" : "emq@x127.0.0.1",
    "online_at" : 1482976411,
    "offline_at" : null
}

例如 ClientId 为 test 客户端下线:

db.mqtt_client.findOne({clientid: "test"})

{
    "_id" : ObjectId("58646c9bdde89a9fb9f7fb73"),
    "clientid" : "test",
    "state" : 0,
    "node" : "emqx@127.0.0.1",
    "online_at" : 1482976411,
    "offline_at" : 1482976501
}

MongoDB 用户订阅主题集合(Subscription Collection)

mqtt_sub 存储订阅关系:

{
    clientid: string,
    topic: string,
    qos: 0,1,2
}

用户 test 分别订阅主题 test_topic0 test_topic1 test_topic2:

db.mqtt_sub.insert({clientid: "test", topic: "test_topic1", qos: 1})
db.mqtt_sub.insert({clientid: "test", topic: "test_topic2", qos: 2})

某个客户端订阅主题:

db.mqtt_sub.find({clientid: ${clientid}})

查询 ClientId 为 “test” 的客户端已订阅主题:

db.mqtt_sub.find({clientid: "test"})

{ "_id" : ObjectId("58646d90c65dff6ac9668ca1"), "clientid" : "test", "topic" : "test_topic1", "qos" : 1 }
{ "_id" : ObjectId("58646d96c65dff6ac9668ca2"), "clientid" : "test", "topic" : "test_topic2", "qos" : 2 }

MongoDB 发布消息集合(Message Collection)

mqtt_msg 存储 MQTT 消息:

{
    _id: int,
    topic: string,
    msgid: string,
    sender: string,
    qos: 0,1,2,
    retain: boolean (true, false),
    payload: string,
    arrived: timestamp
}

查询某个客户端发布的消息:

db.mqtt_msg.find({sender: ${clientid}})

查询 ClientId 为 “test” 的客户端发布的消息:

db.mqtt_msg.find({sender: "test"})
{
    "_id" : 1,
    "topic" : "/World",
    "msgid" : "AAVEwm0la4RufgAABeIAAQ==",
    "sender" : "test",
    "qos" : 1,
    "retain" : 1,
    "payload" : "Hello world!",
    "arrived" : 1482976729
}

MongoDB 保留消息集合(Retain Message Collection)

mqtt_retain 存储 Retain 消息:

{
    topic: string,
    msgid: string,
    sender: string,
    qos: 0,1,2,
    payload: string,
    arrived: timestamp
}

查询 retain 消息:

db.mqtt_retain.findOne({topic: ${topic}})

查询topic为 “t/retain” 的 retain 消息:

db.mqtt_retain.findOne({topic: "t/retain"})
{
    "_id" : ObjectId("58646dd9dde89a9fb9f7fb75"),
    "topic" : "t/retain",
    "msgid" : "AAVEwm0la4RufgAABeIAAQ==",
    "sender" : "c1",
    "qos" : 1,
    "payload" : "Hello world!",
    "arrived" : 1482976729
}

MongoDB 接收消息 ack 集合(Message Acked Collection)

mqtt_acked 存储客户端消息确认:

{
    clientid: string,
    topic: string,
    mongo_id: int
}

启用 MongoDB 数据存储插件

./bin/emqx_ctl plugins load emqx_backend_mongo

Cassandra 消息存储

配置 Cassandra 服务器

配置文件: emqx_backend_cassa.conf

支持配置多台Cassandra服务器连接池:

## Cassandra 节点地址
backend.ecql.pool1.nodes = 127.0.0.1:9042

## Cassandra 连接池大小
backend.ecql.pool1.size = 8

## Cassandra 自动重连间隔(s)
backend.ecql.pool1.auto_reconnect = 1

## Cassandra 认证用户名/密码
backend.ecql.pool1.username = cassandra
backend.ecql.pool1.password = cassandra

## Cassandra Keyspace
backend.ecql.pool1.keyspace = mqtt

## Cassandra Logger type
backend.ecql.pool1.logger = info

##--------------------------------------------------------------------
## Cassandra Backend Hooks
##--------------------------------------------------------------------

## Client Connected Record
backend.cassa.hook.client.connected.1    = {"action": {"function": "on_client_connected"}, "pool": "pool1"}

## Subscribe Lookup Record
backend.cassa.hook.session.created.1     = {"action": {"function": "on_subscription_lookup"}, "pool": "pool1"}

## Client DisConnected Record
backend.cassa.hook.client.disconnected.1 = {"action": {"function": "on_client_disconnected"}, "pool": "pool1"}

## Lookup Unread Message QOS > 0
backend.cassa.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "pool": "pool1"}

## Lookup Retain Message
backend.cassa.hook.session.subscribed.2  = {"action": {"function": "on_retain_lookup"}, "pool": "pool1"}

## Store Publish Message  QOS > 0
backend.cassa.hook.message.publish.1     = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

## Delete Acked Record
backend.cassa.hook.session.unsubscribed.1= {"topic": "#", action": {"cql": ["delete from acked where client_id = ${clientid} and topic = ${topic}"]}, "pool": "pool1"}

## Store Retain Message
backend.cassa.hook.message.publish.2     = {"topic": "#", "action": {"function": "on_message_retain"}, "pool": "pool1"}

## Delete Retain Message
backend.cassa.hook.message.publish.3     = {"topic": "#", "action": {"function": "on_retain_delete"}, "pool": "pool1"}

## Store Ack
backend.cassa.hook.message.acked.1       = {"topic": "#", "action": {"function": "on_message_acked"}, "pool": "pool1"}

## 获取离线消息
##  "offline_opts": 获取离线消息的配置
##     - max_returned_count: 单次拉去的最大离线消息数目
##     - time_range: 仅拉去在当前时间范围的消息
## backend.cassa.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch"}, "offline_opts": {"max_returned_count": 500, "time_range": "2h"}, "pool": "pool1"}

## 如果需要存储 Qos0 消息, 可开启以下配置
## 警告: 当开启以下配置时, 需关闭 'on_message_fetch', 否则 qos1, qos2 消息会被存储俩次
## backend.cassa.hook.message.publish.4     = {"topic": "#", "action": {"function": "on_message_store"}, "pool": "pool1"}

backend 消息存储规则包括:

hook topic action 说明
client.connected   on_client_connected 存储客户端在线状态
session.created   on_subscribe_lookup 订阅主题
client.disconnected   on_client_disconnected 存储客户端离线状态
session.subscribed # on_message_fetch 获取离线消息
session.subscribed # on_retain_lookup 获取retain消息
session.unsubscribed #   删除 akced 消息
message.publish # on_message_publish 存储发布消息
message.publish # on_message_retain 存储retain消息
message.publish # on_retain_delete 删除retain消息
message.acked # on_message_acked 消息ACK处理

自定义 CQL 语句 可用参数包括:

hook 可用参数 示例(cql语句中${name} 表示可获取的参数)
client.connected clientid insert into conn(clientid) values(${clientid})
client.disconnected clientid insert into disconn(clientid) values(${clientid})
session.subscribed clientid, topic, qos insert into sub(topic, qos) values(${topic}, ${qos})
session.unsubscribed clientid, topic delete from sub where topic = ${topic}
message.publish msgid, topic, payload, qos, clientid insert into msg(msgid, topic) values(${msgid}, ${topic})
message.acked msgid, topic, clientid insert into ack(msgid, topic) values(${msgid}, ${topic})
message.deliver msgid, topic, clientid insert into deliver(msgid, topic) values(${msgid}, ${topic})

支持 CQL 语句配置:

考虑到用户的需求不同, backend cassandra 自带的函数无法满足用户需求, 用户可根据自己的需求配置 cql 语句

在 etc/plugins/emqx_backend_cassa.conf 中添加如下配置:

## 在客户端连接到 EMQ X 服务器后，执行一条 cql 语句(支持多条 cql 语句)
backend.cassa.hook.client.connected.3 = {"action": {"cql": ["insert into conn(clientid) values(${clientid})"]}, "pool": "pool1"}

Cassandra 创建一个 Keyspace

CREATE KEYSPACE mqtt WITH replication = {'class': 'SimpleStrategy', 'replication_factor': '1'}  AND durable_writes = true;
USR mqtt;

导入 Cassandra 表结构

cqlsh -e "SOURCE 'emqx_backend_cassa.cql'"

NOTE: 数据库名称可自定义

Cassandra 用户状态表(Client Table)

mqtt.client 存储设备在线状态:

CREATE TABLE mqtt.client (
    client_id text PRIMARY KEY,
    connected timestamp,
    disconnected timestamp,
    node text,
    state int
);

查询设备在线状态:

select * from mqtt.client where client_id = ${clientid};

例如 ClientId 为 test 的客户端上线:

select * from mqtt.client where client_id = 'test';

 client_id | connected                       | disconnected  | node            | state
-----------+---------------------------------+---------------+-----------------+-------
      test | 2017-02-14 08:27:29.872000+0000 |          null | emqx@127.0.0.1|   1

例如ClientId为test客户端下线:

select * from mqtt.client where client_id = 'test';

 client_id | connected                       | disconnected                    | node            | state
-----------+---------------------------------+---------------------------------+-----------------+-------
      test | 2017-02-14 08:27:29.872000+0000 | 2017-02-14 08:27:35.872000+0000 | emqx@127.0.0.1|     0

Cassandra 用户订阅主题表(Sub Table)

mqtt.sub 存储订阅关系:

CREATE TABLE mqtt.sub (
    client_id text,
    topic text,
    qos int,
    PRIMARY KEY (client_id, topic)
);

用户test分别订阅主题test_topic1 test_topic2:

insert into mqtt.sub(client_id, topic, qos) values('test', 'test_topic1', 1);
insert into mqtt.sub(client_id, topic, qos) values('test', 'test_topic2', 2);

某个客户端订阅主题:

select * from mqtt_sub where clientid = ${clientid};

查询ClientId为’test’的客户端已订阅主题:

select * from mqtt_sub where clientid = 'test';

 client_id | topic       | qos
-----------+-------------+------
      test | test_topic1 |   1
      test | test_topic2 |   2

Cassandra 发布消息表(Msg Table)

mqtt.msg 存储MQTT消息:

CREATE TABLE mqtt.msg (
    topic text,
    msgid text,
    arrived timestamp,
    payload text,
    qos int,
    retain int,
    sender text,
    PRIMARY KEY (topic, msgid)
) WITH CLUSTERING ORDER BY (msgid DESC);

查询某个客户端发布的消息:

select * from mqtt_msg where sender = ${clientid};

查询ClientId为’test’的客户端发布的消息:

select * from mqtt_msg where sender = 'test';

 topic | msgid                | arrived                         | payload      | qos | retain | sender
-------+----------------------+---------------------------------+--------------+-----+--------+--------
 hello | 2PguFrHsrzEvIIBdctmb | 2017-02-14 09:07:13.785000+0000 | Hello world! |   1 |      0 |   test
 world | 2PguFrHsrzEvIIBdctmb | 2017-02-14 09:07:13.785000+0000 | Hello world! |   1 |      0 |   test

Cassandra 保留消息表(Retain Message Table)

mqtt.retain 存储 Retain 消息:

CREATE TABLE mqtt.retain (
    topic text PRIMARY KEY,
    msgid text
);

查询 retain 消息:

select * from mqtt_retain where topic = ${topic};

查询 topic 为 ‘t/retain’ 的 retain 消息:

select * from mqtt_retain where topic = 't/retain';

 topic  | msgid
--------+----------------------
 retain | 2PguFrHsrzEvIIBdctmb

Cassandra 接收消息 ack 表(Message Acked Table)

mqtt.acked 存储客户端消息确认:

CREATE TABLE mqtt.acked (
    client_id text,
    topic text,
    msgid text,
    PRIMARY KEY (client_id, topic)
);

启用 Cassandra 存储插件

./bin/emqx_ctl plugins load emqx_backend_cassa

DynamoDB 消息存储

配置 DyanmoDB 消息存储

配置文件: etc/plugins/emqx_backend_dynamo.conf

## DynamoDB Region
backend.dynamo.region = us-west-2

## DynamoDB Server
backend.dynamo.pool1.server = http://localhost:8000

## DynamoDB Pool Size
backend.dynamo.pool1.pool_size = 8

## AWS ACCESS KEY ID
backend.dynamo.pool1.aws_access_key_id = AKIAU5IM2XOC7AQWG7HK

## AWS SECRET ACCESS KEY
backend.dynamo.pool1.aws_secret_access_key = TZt7XoRi+vtCJYQ9YsAinh19jR1rngm/hxZMWR2P

## DynamoDB Backend Hooks
backend.dynamo.hook.client.connected.1    = {"action": {"function": "on_client_connected"}, "pool": "pool1"}
backend.dynamo.hook.session.created.1     = {"action": {"function": "on_subscribe_lookup"}, "pool": "pool1"}
backend.dynamo.hook.client.disconnected.1 = {"action": {"function": "on_client_disconnected"}, "pool": "pool1"}
backend.dynamo.hook.session.subscribed.1  = {"topic": "#", "action": {"function": "on_message_fetch_for_queue"}, "pool": "pool1"}
backend.dynamo.hook.session.subscribed.2  = {"topic": "#", "action": {"function": "on_retain_lookup"}, "pool": "pool1"}
backend.dynamo.hook.session.unsubscribed.1= {"topic": "#", "action": {"function": "on_acked_delete"}, "pool": "pool1"}
backend.dynamo.hook.message.publish.1     = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}
backend.dynamo.hook.message.publish.2     = {"topic": "#", "action": {"function": "on_message_retain"}, "pool": "pool1"}
backend.dynamo.hook.message.publish.3     = {"topic": "#", "action": {"function": "on_retain_delete"}, "pool": "pool1"}
backend.dynamo.hook.message.acked.1       = {"topic": "#", "action": {"function": "on_message_acked_for_queue"}, "pool": "pool1"}

# backend.dynamo.hook.message.publish.4   = {"topic": "#", "action": {"function": "on_message_store"}, "pool": "pool1"}

backend 消息存储规则包括:

hook topic action 说明
client.connected   on_client_connected 存储客户端在线状态
client.connected   on_subscribe_lookup 订阅主题
client.disconnected   on_client_disconnected 存储客户端离线状态
session.subscribed # on_message_fetch_for_queue 获取一对一离线消息
session.subscribed # on_retain_lookup 获取retain消息
message.publish # on_message_publish 存储发布消息
message.publish # on_message_retain 存储retain消息
message.publish # on_retain_delete 删除retain消息
message.acked # on_message_acked_for_queue 一对一消息ACK处理

DynamoDB 数据库创建表

./test/dynamo_test.sh

Note

数据库名称可自定义

DynamoDB 用户状态表(Client Table)

mqtt_client 表定义(存储设备在线状态):

{
    "TableName": "mqtt_client",
    "KeySchema": [
        { "AttributeName": "clientid", "KeyType": "HASH" }
    ],
    "AttributeDefinitions": [
        { "AttributeName": "clientid", "AttributeType": "S" }
    ],
    "ProvisionedThroughput": {
        "ReadCapacityUnits": 5,
        "WriteCapacityUnits": 5
    }
}

查询设备在线状态:

aws dynamodb scan --table-name mqtt_client --region us-west-2  --endpoint-url http://localhost:8000

{
    "Items": [
        {
            "offline_at": { "N": "0" },
            "node": { "S": "emqx@127.0.0.1" },
            "clientid": { "S": "mqttjs_384b9c73a9" },
            "connect_state": { "N": "1" },
            "online_at": { "N": "1562224940" }
        }
    ],
    "Count": 1,
    "ScannedCount": 1,
    "ConsumedCapacity": null
}

DynamoDB 用户订阅主题(Subscription Table)

mqtt_sub 表定义(存储订阅关系):

{
    "TableName": "mqtt_sub",
    "KeySchema": [
        { "AttributeName": "clientid", "KeyType": "HASH" },
        { "AttributeName": "topic", "KeyType": "RANGE" }
    ],
    "AttributeDefinitions": [
        { "AttributeName": "clientid", "AttributeType": "S" },
        { "AttributeName": "topic", "AttributeType": "S" }
    ],
    "ProvisionedThroughput": {
        "ReadCapacityUnits": 5,
        "WriteCapacityUnits": 5
    }
}

查询 ClientId 为 “test-dynamo” 的客户端已订阅主题:

aws dynamodb scan --table-name mqtt_sub --region us-west-2  --endpoint-url http://localhost:8000

{
    "Items": [{"qos": { "N": "2" }, "topic": { "S": "test-dynamo-sub" }, "clientid": { "S": "test-dynamo" }},
               {"qos": { "N": "2" }, "topic": { "S": "test-dynamo-sub-1"}, "clientid": { "S": "test-dynamo" }},
               {"qos": { "N": "2" }, "topic": { "S": "test-dynamo-sub-2"}, "clientid": { "S": "test-dynamo" }}],
    "Count": 3,
    "ScannedCount": 3,
    "ConsumedCapacity": null
}

DynamoDB 发布消息(Message Table)

mqtt_msg 表定义(存储 MQTT 消息):

{
    "TableName": "mqtt_msg",
    "KeySchema": [
        { "AttributeName": "msgid", "KeyType": "HASH" }
    ],
    "AttributeDefinitions": [
        { "AttributeName": "msgid", "AttributeType": "S" }
    ],
    "ProvisionedThroughput": {
        "ReadCapacityUnits": 5,
        "WriteCapacityUnits": 5
    }
}

mqtt_topic_msg_map 表定义(存储主题和消息的映射关系):

{
    "TableName": "mqtt_topic_msg_map",
    "KeySchema": [
        { "AttributeName": "topic", "KeyType": "HASH" }
    ],
    "AttributeDefinitions": [
        { "AttributeName": "topic", "AttributeType": "S" }
    ],
    "ProvisionedThroughput": {
        "ReadCapacityUnits": 5,
        "WriteCapacityUnits": 5
    }
}

某个客户端向主题 test 发布消息后，查询 mqtt_msg 表和 mqtt_topic_msg_map 表:

查询 mqtt_msg 表:

 aws dynamodb scan --table-name mqtt_msg --region us-west-2  --endpoint-url http://localhost:8000

{
    "Items": [
        {
             "arrived": { "N": "1562308553" },
             "qos": { "N": "1" },
             "sender": { "S": "mqttjs_231b962d5c" },
             "payload": { "S": "{ \"msg\": \"Hello, World!\" }"},
             "retain": { "N": "0" },
             "msgid": { "S": "Mjg4MTk1MDYwNTk0NjYwNzYzMTg4MDk3OTQ2MDU2Nzg1OTD" },
             "topic": { "S": "test" }
        }
    ],
    "Count": 1,
    "ScannedCount": 1,
    "ConsumedCapacity": null
}

查询 mqtt_topic_msg_map 表：

 aws dynamodb scan --table-name mqtt_topic_msg_map --region us-west-2  --endpoint-url http://localhost:8000

{
    "Items": [
        {
             "topic": { "S": "test" },
             "MsgId": { "SS": [ "Mjg4MTk1MDYwNTk0NjYwNzYzMTg4MDk3OTQ2MDU2Nzg1OTD" ]}
        }
    ],
    "Count": 1,
    "ScannedCount": 1,
    "ConsumedCapacity": null
}

DynamoDB 保留消息(Retain Message Table)

mqtt_retain 表定义(存储 retain 消息):

{
    "TableName": "mqtt_retain",
    "KeySchema": [
        { "AttributeName": "topic", "KeyType": "HASH" }
    ],
    "AttributeDefinitions": [
        { "AttributeName": "topic", "AttributeType": "S" }
    ],
    "ProvisionedThroughput": {
        "ReadCapacityUnits": 5,
        "WriteCapacityUnits": 5
    }
}

某个客户端向主题 test 发布消息后，查询 mqtt_retain 表:

{
    "Items": [
        {
            "arrived": { "N": "1562312113" },
            "qos": { "N": "1" },
            "sender": { "S": "mqttjs_d0513acfce" },
            "payload": { "S": "test" },
            "retain": { "N": "1" },
            "msgid": { "S": "Mjg4MTk1NzE3MTY4MjYxMjA5MDExMDg0NTk5ODgzMjAyNTH" },
            "topic": { "S": "testtopic" }
        }
    ],
    "Count": 1,
    "ScannedCount": 1,
    "ConsumedCapacity": null
}

DynamoDB 接收消息 ack (Message Acked Table)

mqtt_acked 表定义(存储确认的消息):

{
    "TableName": "mqtt_acked",
    "KeySchema": [
        { "AttributeName": "topic", "KeyType": "HASH" },
        { "AttributeName": "clientid", "KeyType": "RANGE" }
    ],
    "AttributeDefinitions": [
        { "AttributeName": "topic", "AttributeType": "S" },
        { "AttributeName": "clientid", "AttributeType": "S" }
    ],
    "ProvisionedThroughput": {
        "ReadCapacityUnits": 5,
        "WriteCapacityUnits": 5
    }
}

某个客户端向主题 test 发布消息后，查询 mqtt_acked 表:

{
    "Items": [
        {
            "topic": { "S": "test" },
            "msgid": { "S": "Mjg4MTk1MDYwNTk0NjYwNzYzMTg4MDk3OTQ2MDU2Nzg1OTD" },
            "clientid": { "S": "mqttjs_861e582a70" }
        }
    ],
    "Count": 1,
    "ScannedCount": 1,
    "ConsumedCapacity": null
}

启用 DynamoDB 消息存储:

./bin/emqx_ctl plugins load emqx_backend_dynamo

InfluxDB 消息存储

配置 InfluxDB 消息存储

配置文件: etc/plugins/emqx_backend_influxdb.conf:

## InfluxDB UDP 服务地址
backend.influxdb.pool1.server = 127.0.0.1:8089

## InfluxDB 连接池大小
backend.influxdb.pool1.pool_size = 5

## 是否自动添加 timestamp
backend.influxdb.pool1.set_timestamp = true

## 存储 PUBLISH 消息
backend.influxdb.hook.message.publish.1 = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

InfluxDB Backend 消息存储规则参数:

Option Description
topic 配置哪些主题下的消息需要执行 hook
action 配置 hook 具体动作, function 为 Backend 提供的内置函数, 实现通用功能
pool Pool Name, 实现连接多个 InfluxDB Server 功能

Example:

## 存储主题为 "sensor/#" 的 PUBLISH 消息
backend.influxdb.hook.message.publish.1 = {"topic": "sensor/#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

## 存储主题为 "stat/#" 的 PUBLISH 消息
backend.influxdb.hook.message.publish.2 = {"topic": "stat/#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

InfluxDB Backend 支持 Hook 与 相应内置函数列表:

Hook Function list
message.publish on_message_publish

由于 MQTT Message 无法直接写入 InfluxDB, InfluxDB Backend 提供了 emqx_backend_influxdb.tmpl 模板文件将 MQTT Message 转换为可写入 InfluxDB 的 DataPoint。

tmpl 文件使用 Json 格式, 用户可以为不同 Topic 定义不同的 Template, 类似:

{
    <Topic 1>: <Template 1>,
    <Topic 2>: <Template 2>
}

Template 格式如下:

{
    "measurement": <Where is value of measurement>,
    "tags": {
        <Tag Key>: <Where is value of tag>
    },
    "fields": {
        <Field Key>: <Where is value of field>
    },
    "timestamp": <Where is value of timestamp>
}

其中, measurement 与 fields 为必选项, tags 与 timestamp 为可选项。<Where is value of *> 支持首字母为 ‘$’ 的占位符 (“$qos”, “$from”, “$topic”, “$timestamp”) 以及 “$payload” 为首的 Json Key List, 例如 ["$payload", "data", "temp"] 将从 payload 为 {"data": {"temp": 21.3}} 的 MQTT Message 中提取出 21.3.

data/templates/emqx_backend_influxdb.tmpl 提供了一个 sample 供用户参考:

{
    "sample": {
        "measurement": "$topic",
        "tags": {
            "host": ["$payload", "data", "$0", "host"],
            "region": ["$payload", "data", "$0", "region"],
            "qos": "$qos",
            "from": "$from"
        },
        "fields": {
            "temperature": ["$payload", "data", "$0", "temp"]
        },
        "timestamp": "$timestamp"
    }
}

当 Topic 为 “sample” 的 MQTT Message 拥有以下 Payload 时:

{
    "data": [
        {
            "temp": 1,
            "host": "serverA",
            "region": "hangzhou"
        },
        {
            "temp": 2,
            "host": "serverB",
            "region": "ningbo"
        }
    ]
}

Backend 会将 MQTT Message 转换为:

[
    {
        "measurement": "sample",
        "tags": {
            "from": "mqttjs_ebcc36079a",
            "host": "serverA",
            "qos": "0",
            "region": "hangzhou",
        },
        "fields": {
            "temperature": "1"
        },
        "timestamp": "1560743513626681000"
    },
    {
        "measurement": "sample",
        "tags": {
            "from": "mqttjs_ebcc36079a",
            "host": "serverB",
            "qos": "0",
            "region": "ningbo",
        },
        "fields": {
            "temperature": "2"
        },
        "timestamp": "1560743513626681000"
    }
]

最终编码为以下数据写入 InfluxDB:

"sample,from=mqttjs_6990f0e886,host=serverA,qos=0,region=hangzhou temperature=\"1\" 1560745505429670000\nsample,from=mqttjs_6990f0e886,host=serverB,qos=0,region=ningbo temperature=\"2\" 1560745505429670000\n"

启用 InfluxDB 消息存储:

./bin/emqx_ctl plugins load emqx_backend_influxdb

OpenTSDB 消息存储

配置 OpenTSDB 消息存储

配置文件：etc/plugins/emqx_backend_opentsdb.conf:

## OpenTSDB 服务地址
backend.opentsdb.pool1.server = 127.0.0.1:4242

## OpenTSDB 连接池大小
backend.opentsdb.pool1.pool_size = 8

## 是否返回 summary info
##
## Value: true | false
backend.opentsdb.pool1.summary = true

## 是否返回 detailed info
##
## Value: true | false
backend.opentsdb.pool1.details = false

## 是否同步写入
##
## Value: true | false
backend.opentsdb.pool1.sync = false

## 同步写入超时时间，单位毫秒
##
## Value: Duration
##
## Default: 0
backend.opentsdb.pool1.sync_timeout = 0

## 最大批量写条数
##
## Value: Number >= 0
## Default: 20
backend.opentsdb.pool1.max_batch_size = 20

## 存储 PUBLISH 消息
backend.opentsdb.hook.message.publish.1 = {"topic": "#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

OpenTSDB Backend 消息存储规则参数:

Option Description
topic 配置哪些主题下的消息需要执行 hook
action 配置 hook 具体动作, function 为 Backend 提供的内置函数, 实现通用功能
pool Pool Name, 实现连接多个 OpenTSDB Server 功能

示例:

## 存储主题为 "sensor/#" 的 PUBLISH 消息
backend.influxdb.hook.message.publish.1 = {"topic": "sensor/#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

## 存储主题为 "stat/#" 的 PUBLISH 消息
backend.influxdb.hook.message.publish.2 = {"topic": "stat/#", "action": {"function": "on_message_publish"}, "pool": "pool1"}

OpenTSDB Backend 支持 Hook 与 相应内置函数列表:

Hook Function list
message.publish on_message_publish

由于 MQTT Message 无法直接写入 OpenTSDB, OpenTSDB Backend 提供了 emqx_backend_opentsdb.tmpl 模板文件将 MQTT Message 转换为可写入 OpenTSDB 的 DataPoint。

tmpl 文件使用 Json 格式, 用户可以为不同 Topic 定义不同的 Template, 类似:

{
    <Topic 1>: <Template 1>,
    <Topic 2>: <Template 2>
}

Template 格式如下:

{
    "measurement": <Where is value of measurement>,
    "tags": {
        <Tag Key>: <Where is value of tag>
    },
    "value": <Where is value of value>,
    "timestamp": <Where is value of timestamp>
}

其中, measurement 与 value 为必选项, tags 与 timestamp 为可选项。<Where is value of *> 支持首字母为 ‘$’ 的占位符 (“$qos”, “$from”, “$topic”, “$timestamp”) 以及 “$payload” 为首的 Json Key List, 例如 ["$payload", "data", "temp"] 将从 payload 为 {"data": {"temp": 21.3}} 的 MQTT Message 中提取出 21.3.

/etc/plugins/emqx_backend_opentsdb.tmpl 提供了一个 sample 供用户参考:

{
    "sample": {
        "measurement": "$topic",
        "tags": {
            "host": ["$payload", "data", "$0", "host"],
            "region": ["$payload", "data", "$0", "region"],
            "qos": "$qos",
            "from": "$from"
        },
        "value": ["$payload", "data", "$0", "temp"],
        "timestamp": "$timestamp"
    }
}

当 Topic 为 “sample” 的 MQTT Message 拥有以下 Payload 时:

{
    "data": [
        {
            "temp": 1,
            "host": "serverA",
            "region": "hangzhou"
        },
        {
            "temp": 2,
            "host": "serverB",
            "region": "ningbo"
        }
    ]
}

Backend 将 MQTT Message 转换为以下数据写入 OpenTSDB:

[
    {
        "measurement": "sample",
        "tags": {
            "from": "mqttjs_ebcc36079a",
            "host": "serverA",
            "qos": "0",
            "region": "hangzhou",
        },
        "value": "1",
        "timestamp": "1560743513626681000"
    },
    {
        "measurement": "sample",
        "tags": {
            "from": "mqttjs_ebcc36079a",
            "host": "serverB",
            "qos": "0",
            "region": "ningbo",
        },
        "value": "2",
        "timestamp": "1560743513626681000"
    }
]

启用 OpenTSDB 消息存储:

./bin/emqx_ctl plugins load emqx_backend_opentsdb
